PEF16FMS

PEF16FMS is a Flared Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for PEF16FMS

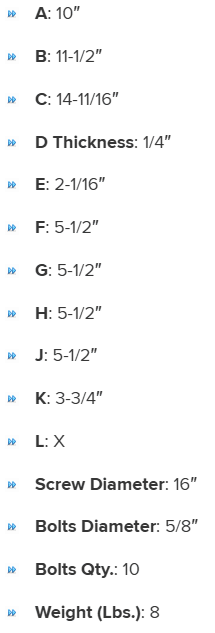

Specifications

C

14-11/16"

A

10"

J

5-1/2"

K

3-3/4"

L

X

B

11-1/2"

D Thickness

1/4"

Screw Diameter

16"

E

2-1/4"

Bolts Diameter

5/8"

Bolts Qty.

10

F

5-1/2"

Weight (Lbs.)

8

G

5-1/2"

H

5-1/2"
