IC3716440

IC3716440 is a Internal Collars product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Internal Collars - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

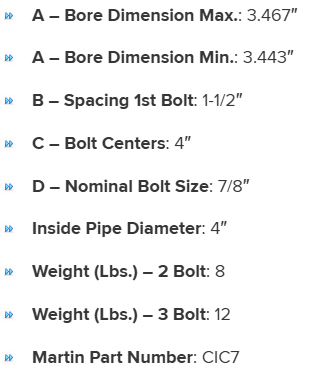

Specifications

C - Bolt Centers

4"
A - Bore Dimension Max.

3.467"
A - Bore Dimension Min.

3.443"
Martin Part Number

CIC7
D - Nominal Bolt Size

7/8"
B - Spacing 1st Bolt

1-1/2"
Weight (Lbs.) - 2 Bolt

8
Weight (Lbs.) - 3 Bolt

12
Inside Pipe Diameter

4"
