IC2716340

  • internal-collars

IC2716340 is a Internal Collars product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for IC2716340

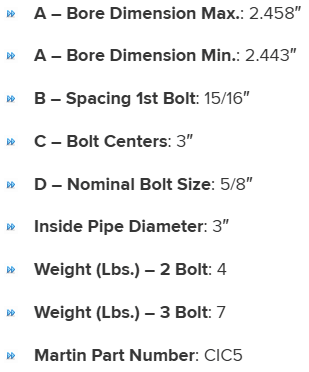

Specifications

C - Bolt Centers

3"

A - Bore Dimension Max.

2.458"

A - Bore Dimension Min.

2.443"

Martin Part Number

CIC5

D - Nominal Bolt Size

5/8"

B - Spacing 1st Bolt

15/16"

Weight (Lbs.) - 2 Bolt

4

Weight (Lbs.) - 3 Bolt

7

Inside Pipe Diameter

3"
