IC112240

IC112240 is a Internal Collars product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Internal Collars - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

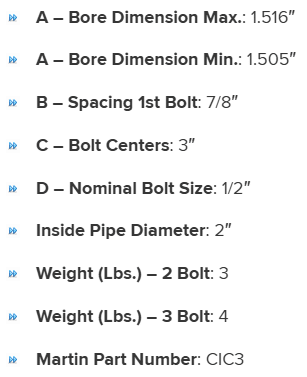

Specifications

C - Bolt Centers

3"
A - Bore Dimension Max.

1.516"
A - Bore Dimension Min.

1.505"
Martin Part Number

CIC3
D - Nominal Bolt Size

1/2"
B - Spacing 1st Bolt

7/8"
Weight (Lbs.) - 2 Bolt

3
Weight (Lbs.) - 3 Bolt

4
Inside Pipe Diameter

2"
