ISF20

ISF20 is a Inlet Spouts product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
inlet-spouts

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

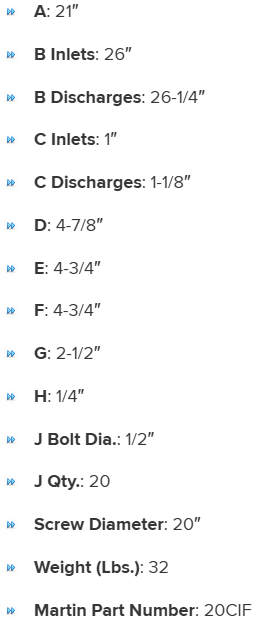

Specifications

A

21"
J Bolt Dia.

1/2"
J Qty.

20
C Discharges

1-1/8"
C Inlets

1"
Martin Part Number

20CIF
B Discharges

26-1/4"
D

4-7/8"
B Inlets

26"
Screw Diameter

20"
E

4-3/4"
F

4-3/4"
G

2-1/2"
Weight (Lbs.)

32
H

1/4"
