ISF18

ISF18 is a Inlet Spouts product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Inlet Spouts - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

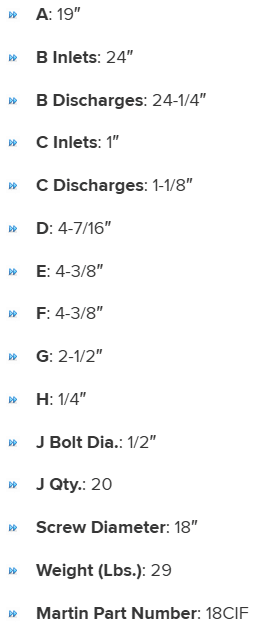

Specifications

A

19"
J Bolt Dia.

1/2"
J Qty.

20
C Discharges

1-1/8"
C Inlets

1"
Martin Part Number

18CIF
B Discharges

24-1/4"
D

4-7/16"
B Inlets

24"
Screw Diameter

18"
E

4-3/8"
F

4-3/8"
G

2-1/2"
Weight (Lbs.)

29
H

1/4"
