ISF12

ISF12 is a Inlet Spouts product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
inlet-spouts

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

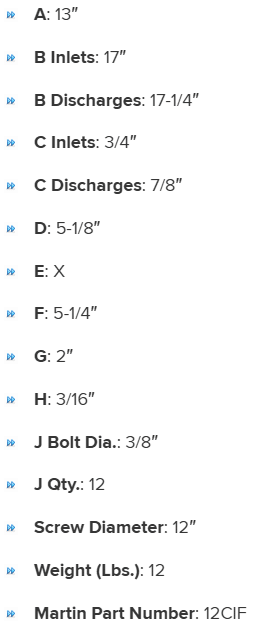

Specifications

A

13"
J Bolt Dia.

3/8"
J Qty.

12
C Discharges

7/8"
C Inlets

3/4"
Martin Part Number

12CIF
B Discharges

17-1/4"
D

5-1/8"
B Inlets

17"
Screw Diameter

12"
E

X
F

5-1/4"
G

2"
Weight (Lbs.)

12
H

3/16"
