6HF312R

6HF312R is a Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 6HF312R

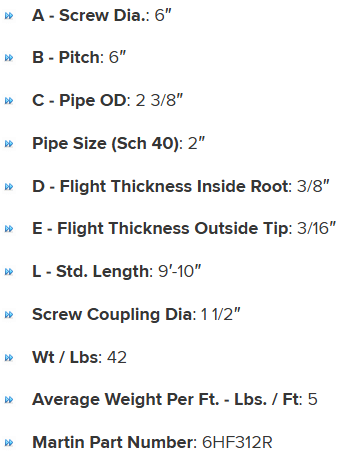

Specifications

A - Diameter Tolerance Minus

3/16"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

A - Screw Dia.

6"

Martin Part Number

6HF312R

Average Weight Per Ft. - Lbs./Ft.

5

Pipe Sch 40 - C- Pipe OD

2 3/8"

Pipe Sch 40 - Size

2"

D - Flight Thcknss Inside Root

3/8"

Screw Coupling Dia

1 1/2"

B - Pitch

6"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1/2"

E - Flight Thcknss Outside Tip

3/16"

Wt / Lbs

42
