4HF206R

4HF206R is a Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 4HF206R

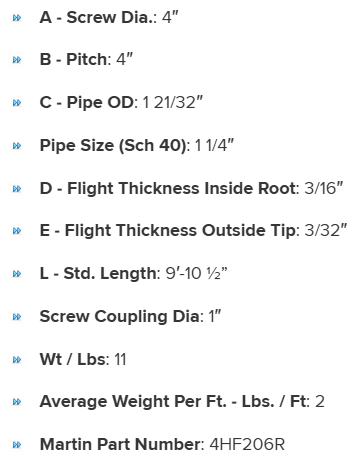

Specifications

A - Diameter Tolerance Minus

1/8"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10 ½"

A - Screw Dia.

4"

Martin Part Number

4HF206R

Average Weight Per Ft. - Lbs./Ft.

2

Pipe Sch 40 - C- Pipe OD

1 21/32"

Pipe Sch 40 - Size

1 1/4"

D - Flight Thcknss Inside Root

3/16"

Screw Coupling Dia

1"

B - Pitch

4"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1/2"

E - Flight Thcknss Outside Tip

3/32"

Wt / Lbs

11
