16HF610R

16HF610R is a Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

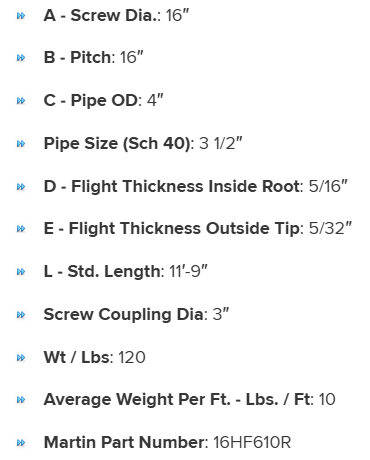

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

A - Screw Dia.

16"

Martin Part Number

16HF610R

Average Weight Per Ft. - Lbs./Ft.

10

Pipe Sch 40 - C- Pipe OD

4"

Pipe Sch 40 - Size

3 1/2"

D - Flight Thcknss Inside Root

5/16"

B - Pitch

16"

Screw Coupling Dia

3"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1-1/2"

E - Flight Thcknss Outside Tip

5/32"

Wt / Lbs

120
