HGB2263716W

HGB2263716W is a Wood Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-226-Wood

Download CAD files

Dimensional Drawing for CEMA Stock Components

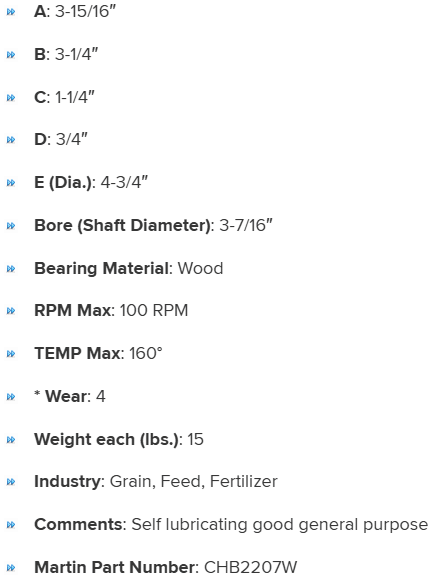

Specifications

A

3-15/16"

C

1-1/4"

Martin Part Number

CHB2207W

Comments

Self lubricating good general purpose

B

3-1/4"

D

3/4"

RPM Max

100 RPM

Bearing Material

Wood

E (Dia.)

4-3/4"

TEMP Max

160°

Bore (Shaft Diameter)

3-7/16"

* Wear

4

Weight each (lbs.)

15

Industry

Grain, Feed, Fertilizer
