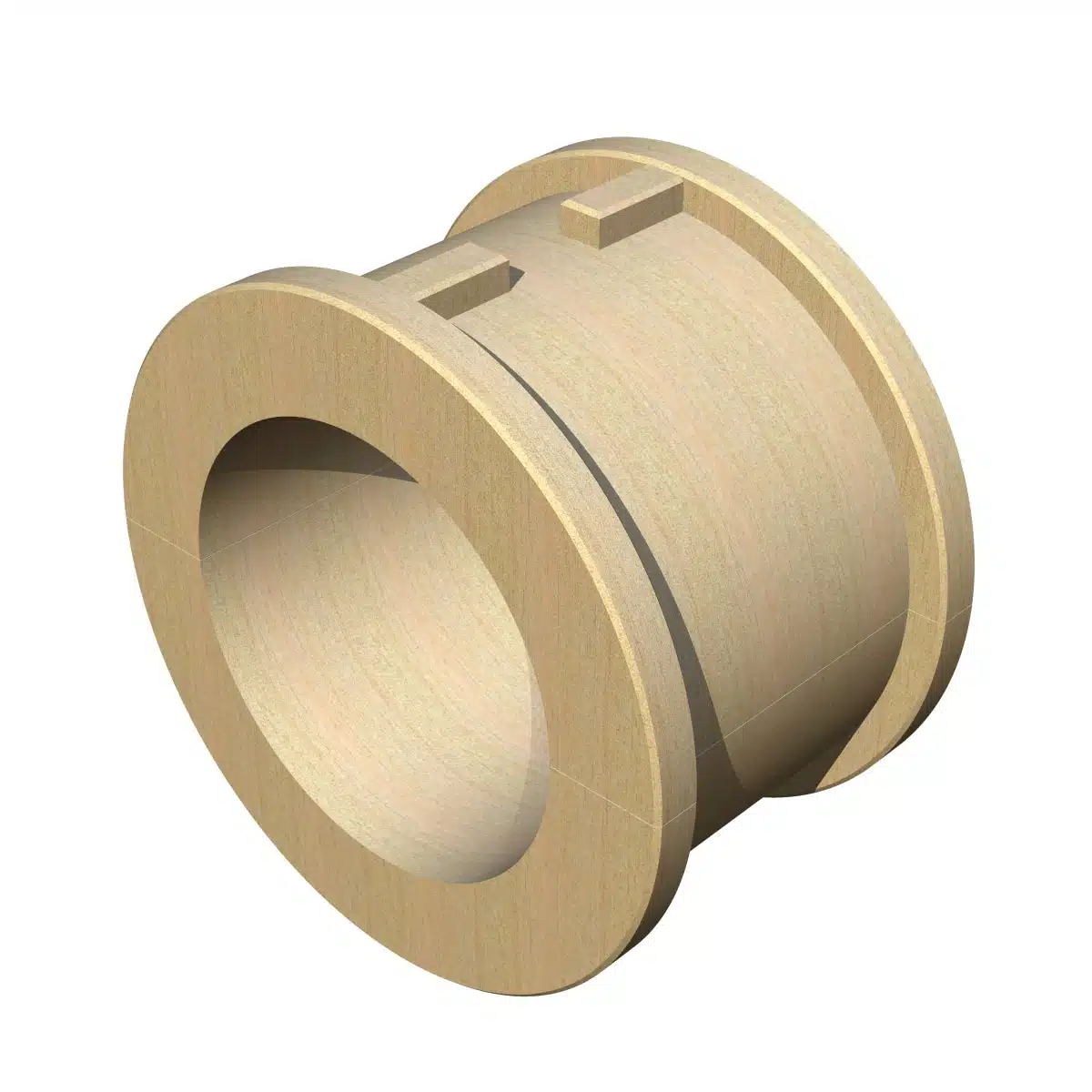

HGB2262716W

HGB2262716W is a Wood Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2262716W

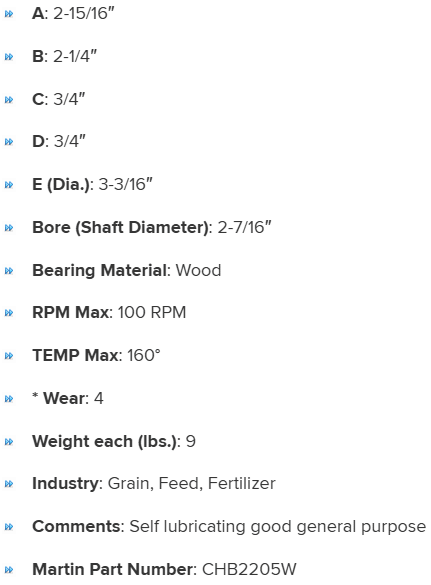

Specifications

C

3/4"

A

2-15/16"

Martin Part Number

CHB2205W

Comments

Self lubricating good general purpose

B

2-1/4"

D

3/4"

RPM Max

100 RPM

Bearing Material

Wood

TEMP Max

160°

E (Dia.)

3-3/16"

Bore (Shaft Diameter)

2-7/16"

* Wear

4

Weight each (lbs.)

9

Industry

Grain, Feed, Fertilizer
