HGB2263G

HGB2263G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Style-226-Gatke

Download CAD files

Dimensional Drawing for CEMA Stock Components

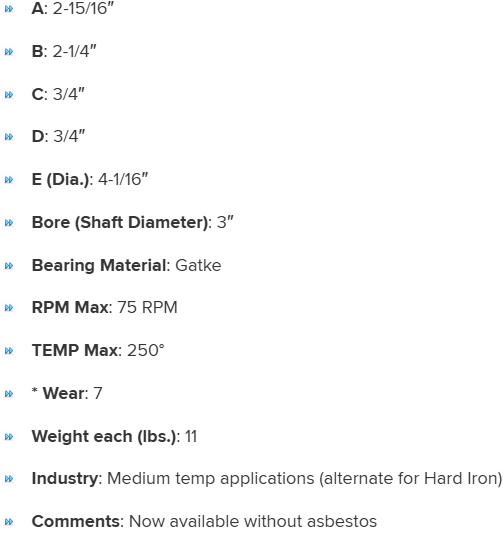

Specifications

A

2-15/16"

C

3/4"

Comments

Now available without asbestos

B

2-1/4"

D

3/4"

RPM Max

75 RPM

Bearing Material

Gatke

E (Dia.)

4-1/16"

TEMP Max

250°

Bore (Shaft Diameter)

3"

* Wear

7

Weight each (lbs.)

11

Industry

Medium temp applications (alternate for Hard Iron)
