HGB2263716G

HGB2263716G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Style-226-Gatke

Download CAD files

Dimensional Drawing for CEMA Stock Components

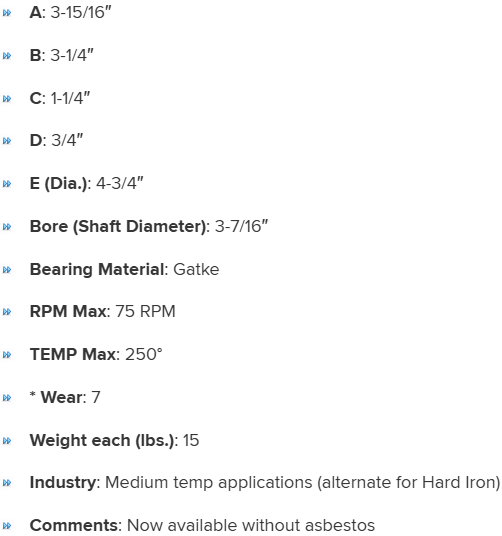

Specifications

A

3-15/16"

C

1-1/4"

Comments

Now available without asbestos

B

3-1/4"

D

3/4"

RPM Max

75 RPM

Bearing Material

Gatke

E (Dia.)

4-3/4"

TEMP Max

250°

Bore (Shaft Diameter)

3-7/16"

* Wear

7

Weight each (lbs.)

15

Industry

Medium temp applications (alternate for Hard Iron)
