HGB2262716G

HGB2262716G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-226-Gatke

Download CAD files

Dimensional Drawing for CEMA Stock Components

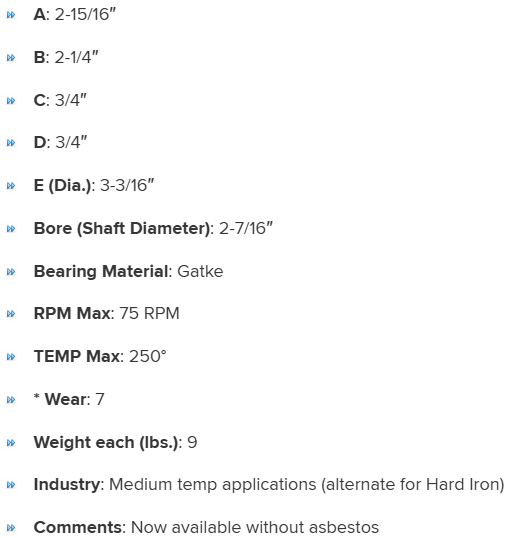

Specifications

A

2-15/16"

C

3/4"

Comments

Now available without asbestos

B

2-1/4"

D

3/4"

RPM Max

75 RPM

Bearing Material

Gatke

E (Dia.)

3-3/16"

TEMP Max

250°

Bore (Shaft Diameter)

2-7/16"

* Wear

7

Weight each (lbs.)

9

Industry

Medium temp applications (alternate for Hard Iron)
