HGB226112G

HGB226112G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing

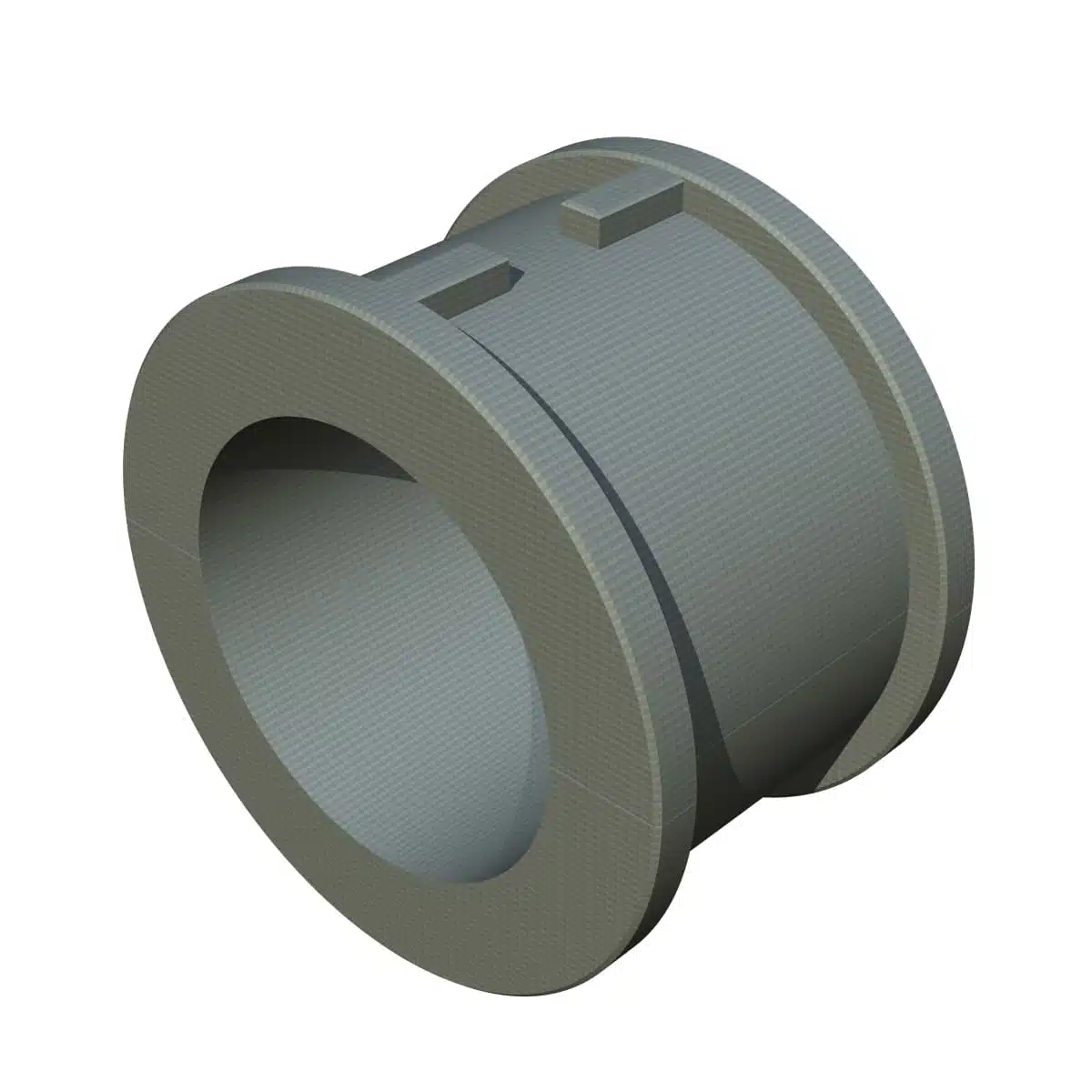

Style-226-Gatke

Download CAD files

Dimensional Drawing for CEMA Stock Components

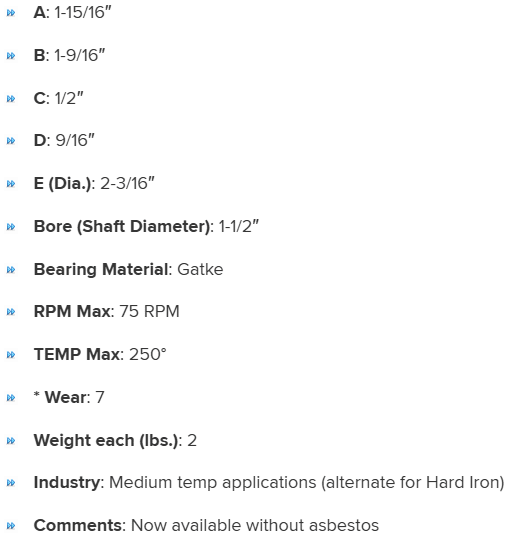

Specifications

A

1-15/16"

C

1/2"

Comments

Now available without asbestos

B

1-9/16"

D

9/16"

RPM Max

75 RPM

Bearing Material

Gatke

E (Dia.)

2-3/16"

TEMP Max

250°

Bore (Shaft Diameter)

1-1/2"

* Wear

7

Weight each (lbs.)

2

Industry

Medium temp applications (alternate for Hard Iron)
