HGB2262BR

HGB2262BR is a Bronze Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2262BR

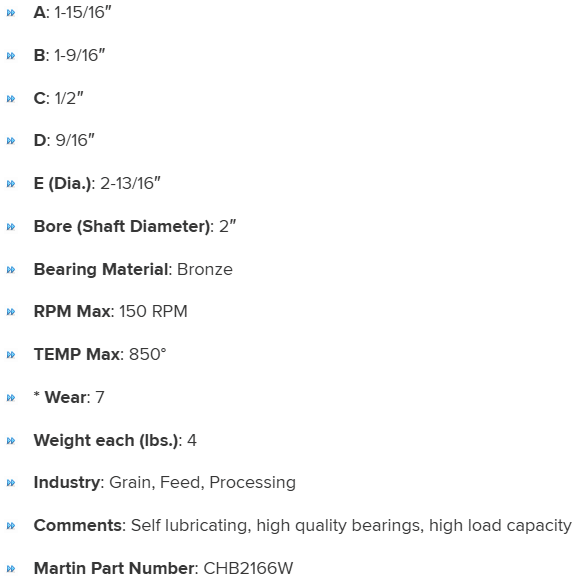

Specifications

A

1-15/16"

C

1/2"

Comments

Self lubricating, high quality bearings, high load capacity

B

1-9/16"

D

9/16"

RPM Max

150 RPM

Bearing Material

Bronze

TEMP Max

850°

E (Dia.)

2-13/16"

Bore (Shaft Diameter)

2"

* Wear

7

Weight each (lbs.)

4

Industry

Grain, Feed, Processing
