HGB2163W

HGB2163W is a Wood Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Style-216-Wood

Download CAD files

Dimensional Drawing for CEMA Stock Components

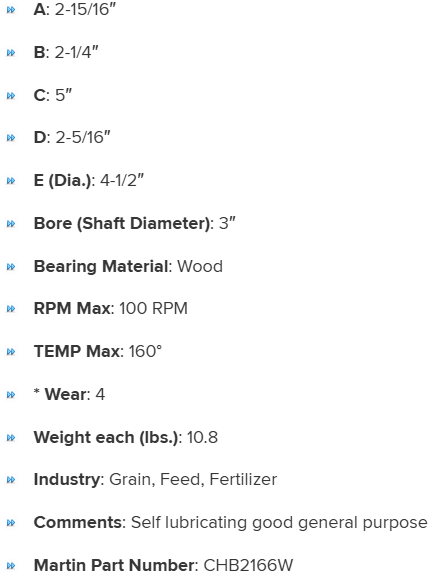

Specifications

A

2-15/16"

C

5"

Martin Part Number

CHB2166W

Comments

Self lubricating good general purpose

B

2-1/4"

D

2-5/16"

RPM Max

100 RPM

Bearing Material

Wood

E (Dia.)

4-1/2"

TEMP Max

160°

Bore (Shaft Diameter)

3"

* Wear

4

Weight each (lbs.)

10.8

Industry

Grain, Feed, Fertilizer
