HGB2163716W

HGB2163716W is a Wood Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-216-Wood

Download CAD files

Dimensional Drawing for CEMA Stock Components

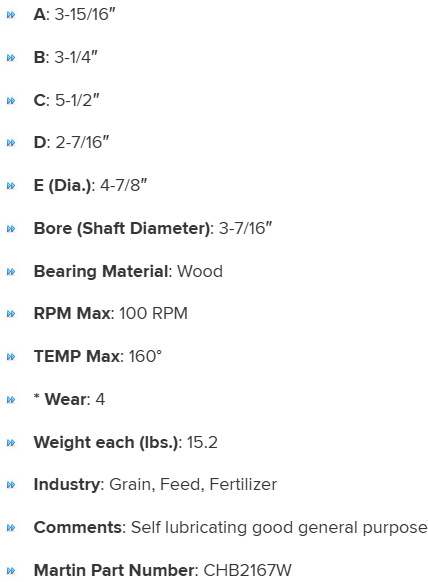

Specifications

A

3-15/16"

C

5-1/2"

Martin Part Number

CHB2167W

Comments

Self lubricating good general purpose

B

3-1/4"

D

2-7/16"

RPM Max

100 RPM

Bearing Material

Wood

E (Dia.)

4-7/8"

TEMP Max

160°

Bore (Shaft Diameter)

3-7/16"

* Wear

4

Weight each (lbs.)

15.2

Industry

Grain, Feed, Fertilizer
