HGB2164716H

HGB2164716H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2164716H

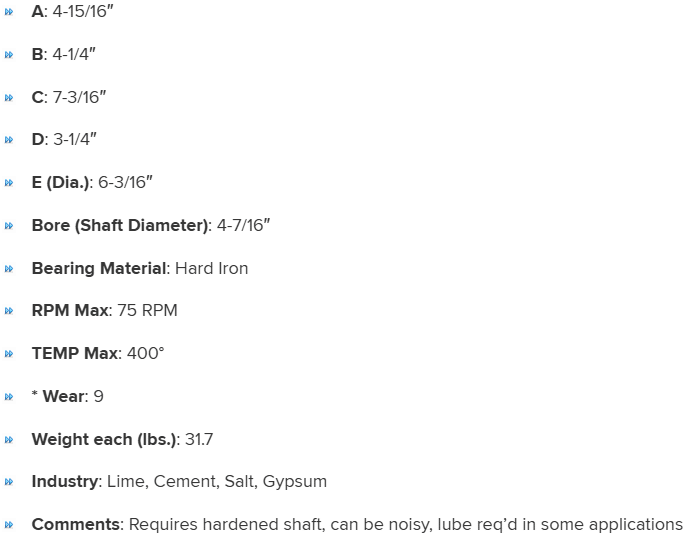

Specifications

A

4-15/16"

C

7-3/16"

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

4-1/4"

D

3-1/4"

RPM Max

75 RPM

Bearing Material

Hard Iron

TEMP Max

400°

E (Dia.)

6-3/16"

Bore (Shaft Diameter)

4-7/16"

* Wear

9

Weight each (lbs.)

31.7

Industry

Lime, Cement, Salt, Gypsum
