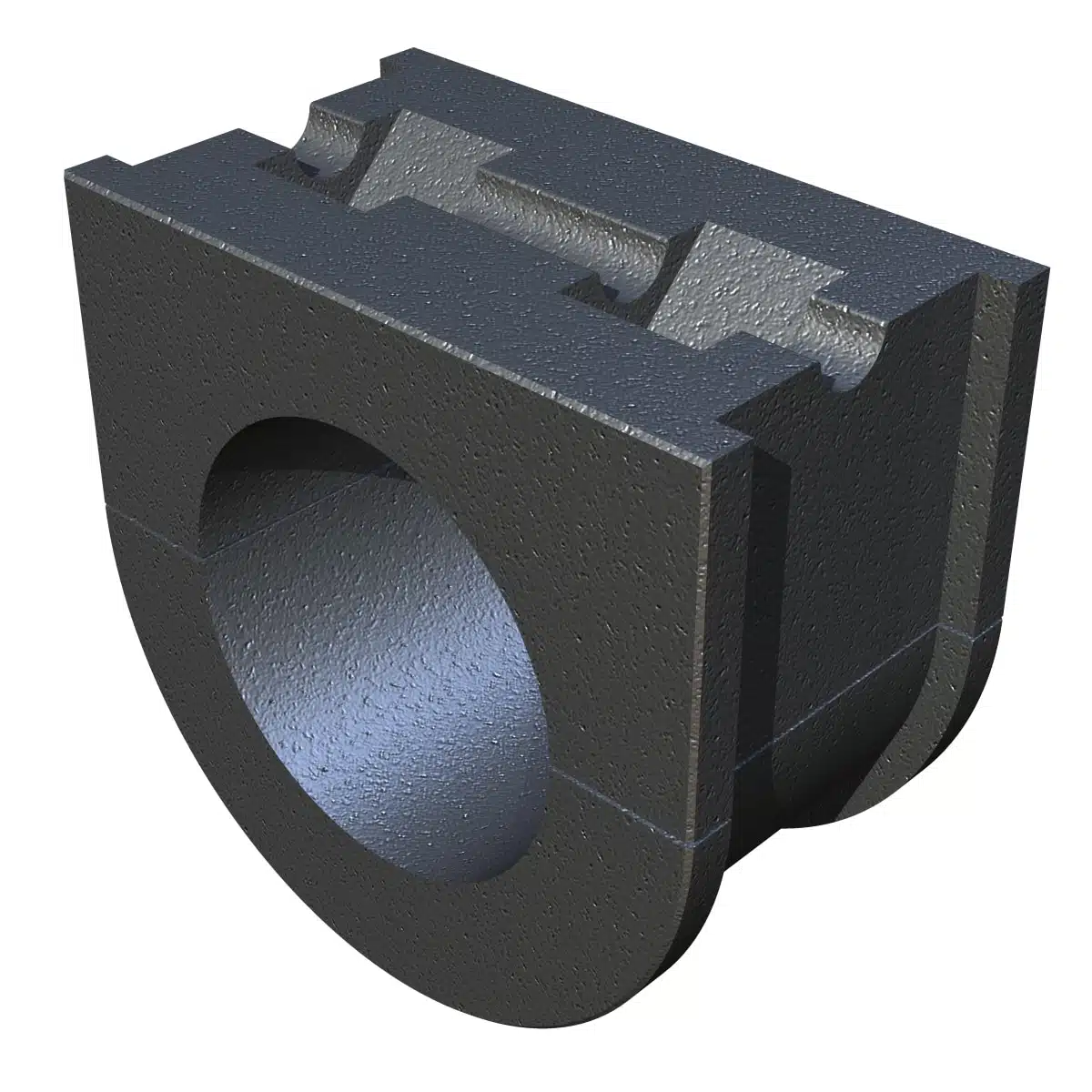

HGB2162H

HGB2162H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2162H

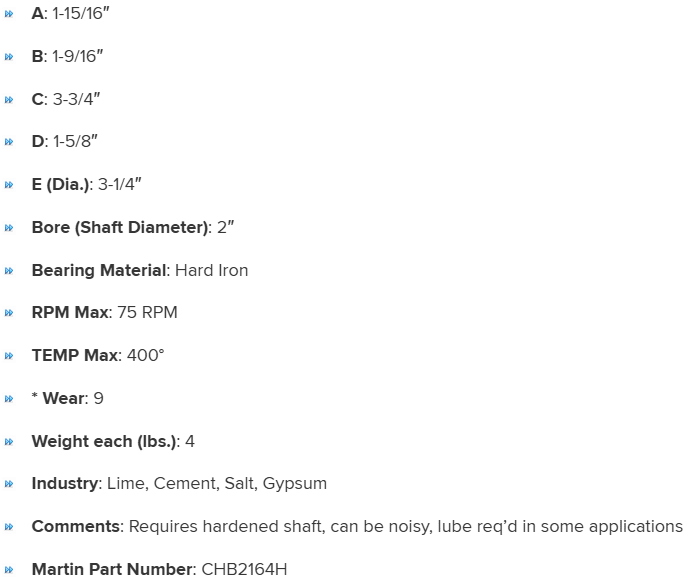

Specifications

C

3-3/4"

A

1-15/16"

Martin Part Number

CHB2164H

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

1-9/16"

D

1-5/8"

RPM Max

75 RPM

Bearing Material

Hard Iron

TEMP Max

400°

E (Dia.)

3-1/4"

Bore (Shaft Diameter)

2"

* Wear

9

Weight each (lbs.)

4

Industry

Lime, Cement, Salt, Gypsum
