HGB2162716G

HGB2162716G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2162716G

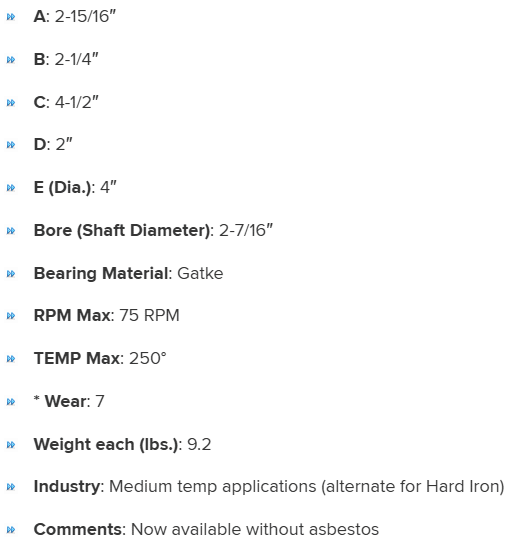

Specifications

A

2-15/16"

C

4-1/2"

Comments

Now available without asbestos

B

2-1/4"

D

2"

RPM Max

75 RPM

Bearing Material

Gatke

TEMP Max

250°

E (Dia.)

4"

Bore (Shaft Diameter)

2-7/16"

* Wear

7

Weight each (lbs.)

9.2

Industry

Medium temp applications (alternate for Hard Iron)
