12HS408R

12HS408R is a 304 SS Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other 304 Stainless Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
helicoid-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

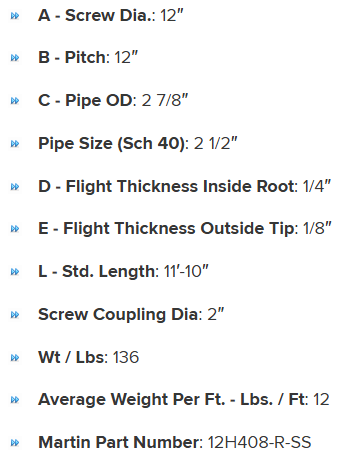

Specifications

A - Diameter Tolerance Minus

5/16"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-10"

A - Screw Dia.

12"

Martin Part Number

12H408-R-SS

Average Weight Per Ft. - Lbs./Ft.

12

Pipe Sch 40 - C- Pipe OD

2 7/8"

Pipe Sch 40 - Size

2 1/2"

D - Flight Thcknss Inside Root

1/4"

B - Pitch

12"

Screw Coupling Dia

2"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1"

E - Flight Thcknss Outside Tip

1/8"

Wt / Lbs

136
