TUF1212SS

TUF1212SS is a 304 SS Formed Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other 304 Stainless Steel Stock Components.

U Trough Formed Flange | KWS Manufacturing

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

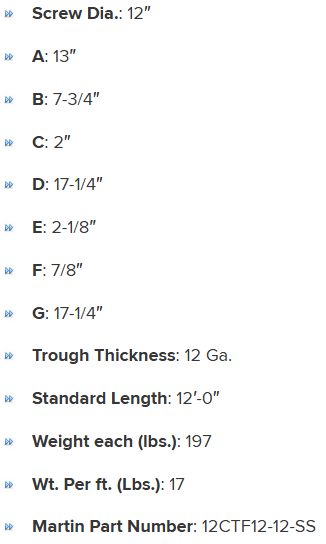

Specifications

A

13"
C

2"
Martin Part Number

12CTF12-12-SS
B

7-3/4"
D

17-1/4"
Screw Dia.

12"
E

2-1/8"
Standard Length

12’-0"
Trough Thickness

12 Ga.
F

7/8"
Weight each (lbs.)

197
G

17-1/4"
Wt. Per ft. (Lbs.)

17
