KWS Waste Pack Seals

Introduction

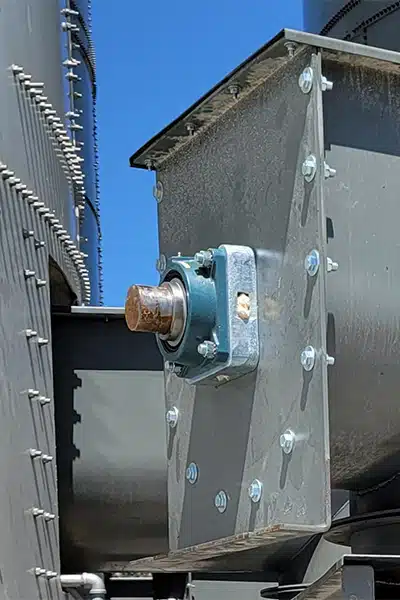

KWS Waste Pack Seals are a reliable and widely used shaft sealing solution for both screw conveyors and drag conveyors. Typically installed between the trough end and a flanged bearing, they are most commonly located at the tail end of a conveyor where effective sealing is critical.

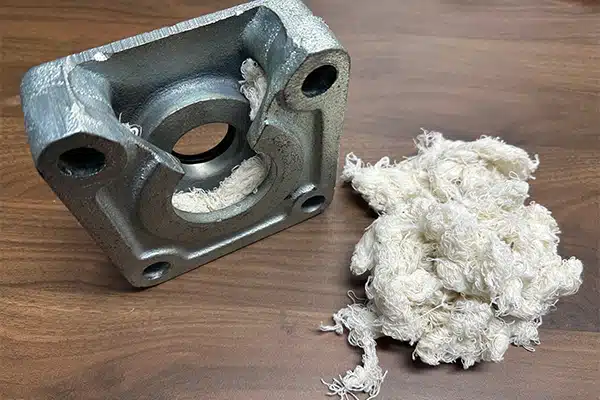

The seal functions by filling the waste pack cavity with packing material that surrounds the rotating shaft, preventing material leakage. For added performance, lubricant can be applied to the packing material, enhancing the seal’s effectiveness and extending service life.

KWS offers Waste Pack Seals in standard CEMA sizes ranging from 1 inch up to 3-7/16 inches in shaft diameter, available for same-day shipment. For specialized needs, Made-to-Order seals can also be manufactured to meet unique application requirements.

Features

Simple, Proven Design – With no moving parts to wear out or adjust, KWS Waste Pack Seals are easy to use. Additional packing material can be added as needed to maintain sealing performance.

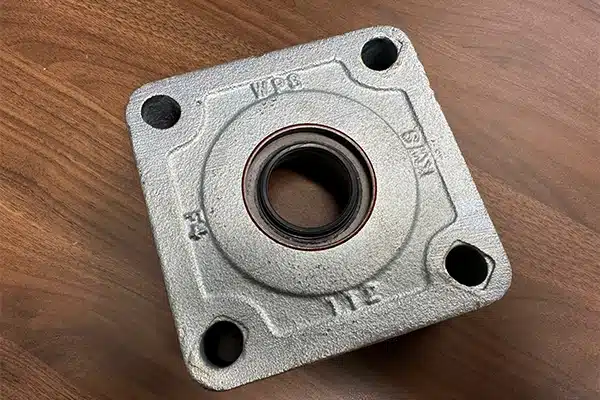

Dual Sealing Protection – Each seal combines a lip seal with a waste pack cavity, providing two layers of protection against leakage.

Corrosion Resistant Construction – Standard seals are zinc-plated for long-lasting corrosion resistance. For harsher environments, stainless steel options are also available.

Benefits

Low Maintenance – Waste Pack Seals require minimal attention; simply add packing material when necessary to maintain peak performance.

Extended Bearing Life – The dual sealing system protects bearings from contamination, reducing wear and minimizing costly downtime.

Versatile Applications – Designed to fit all CEMA standard shaft diameters and bolt patterns, Waste Pack Seals are suitable for a wide range of industries and material handling needs.

KWS Waste Pack Seals offer a rugged yet straightforward solution for shaft sealing. By combining a simple design with dual sealing protection, they help safeguard bearings, shafts, and conveyed products. The result is a cost-effective, long-lasting solution for a wide variety of bulk material handling applications.
