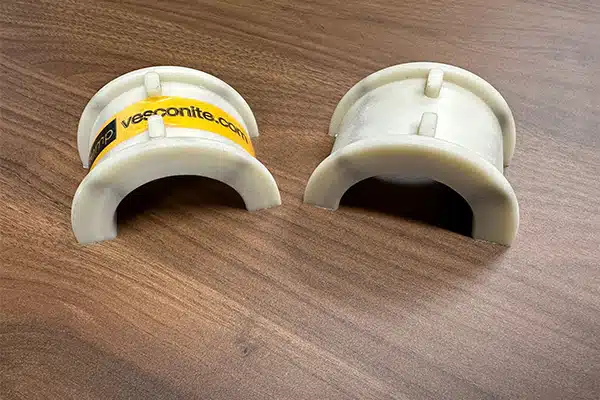

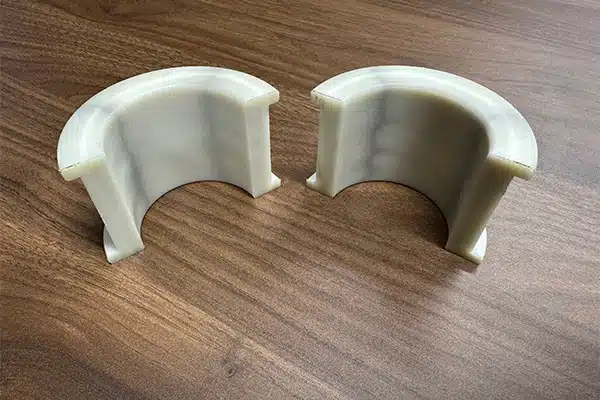

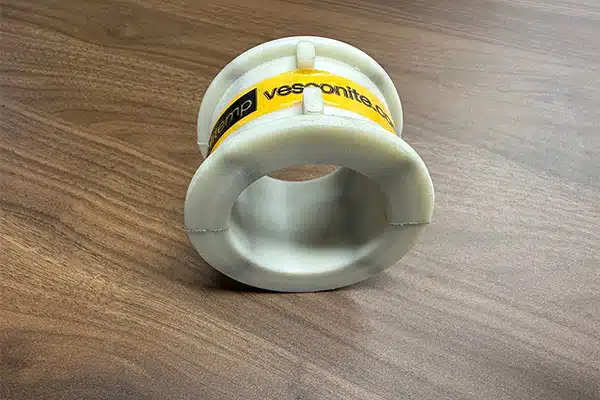

KWS Vesconite HiTemp 150 Hanger Bearings

KWS Vesconite HiTemp 150 hanger bearings are made from a thermoplastic material that is internally lubricated with polymers and designed for handling elevated temperatures and abrasive bulk materials.

Used in a variety of applications, Vesconite HiTemp 150 hanger bearings have become the preferred bearing for conveying granulated sugar, hydrated lime, and gypsum powder. External lubrication is not required. KWS supplies both style 216 and 226 hanger bearings from Vesconite HiTemp 150 material.

Vesconite Hitemp 150 Hanger Bearings are Preferred for Conveying Granulated Sugar

Vesconite Hitemp 150 Hanger Bearings are Preferred for Conveying Granulated Sugar

Features

Wear Resistance – Resistant to moderately abrasive bulk materials and less affected by dirty conditions

Wide Temperature Range – Operate in temperatures ranging from 0 to +300-degrees F

Dimensional Stability – Will not swell when exposed to water or humid conditions

Benefits

Direct Replacement for Melamine – Vesconite Hitemp 150 outperforms Melamine and is readily available

FDA Approved – Excellent for conveying sugar and other food products

Variety of Applications – Used for conveying dry or wet bulk materials

KWS Vesconite Hitemp 150 bearings are ideal for screw conveyor applications involving moderate to heavy loads and speeds up to 85-rpm. Please refer to the KWS Screw Conveyor Engineering Guide for more information.


Operating Temperature Range is 0 to +300-Degrees F

Operating Temperature Range is 0 to +300-Degrees F

Vesconite Hitemp 150 is a Thermoplastic Material with Polymers for Internal Lubrication

Vesconite Hitemp 150 is a Thermoplastic Material with Polymers for Internal Lubrication
