9S424R80CW23B

9S424R80CW23B is a Rendering Screws product manufactured by KWS Mfg. Request a Quote below for this and other Stock Components for the Rendering Industry.

3D Preview Trigger | KWS Manufacturing
sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

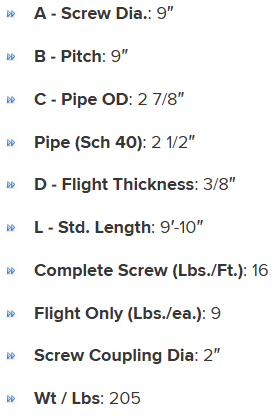

Specifications

A - Diameter Tolerance Minus

1/4"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

C - Pipe Sch 40 - Pipe OD

2 7/8"

A - Screw Diameter

9"

Complete Screw (Lbs./Ft.)

16

Pipe Sch 40 - Size

2 1/2"

B - Pitch

9"

D - Flight Thickness

3/8"

B - Pitch Tolerance Minus

1/4"

Screw Coupling Diameter

2"

B - Pitch Tolerance Plus

1/2"

Flight Only (Lbs./ea.)

9

Wt / Lbs

205
