TUA24316

TUA24316 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Angled Flange - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

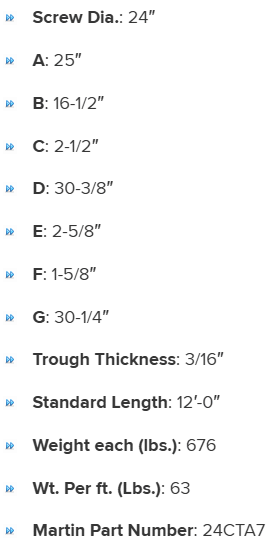

Specifications

A

25"
C

2-1/2"
Martin Part Number

24CTA7
B

16-1/2"
D

30-3/8"
Screw Dia.

24"
E

2-5/8"
Standard Length

12’-0"
Trough Thickness

3/16"
F

1-5/8"
Weight each (lbs.)

676
G

30-1/4"
Wt. Per ft. (Lbs.)

63
