TUA1612

TUA1612 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
u-trough-angled-flange

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

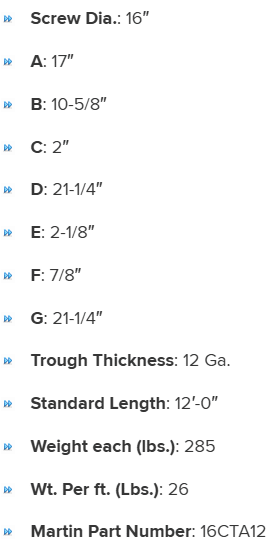

Specifications

A

17"
C

2"
Martin Part Number

16CTA12
B

10-5/8"
D

21-1/4"
Screw Dia.

16"
E

2-1/8"
Standard Length

12’-0"
Trough Thickness

12 Ga.
F

7/8"
Weight each (lbs.)

285
G

21-1/4"
Wt. Per ft. (Lbs.)

26
