TEFO203UBBRB

TEFO203UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for TEFO203UBBRB

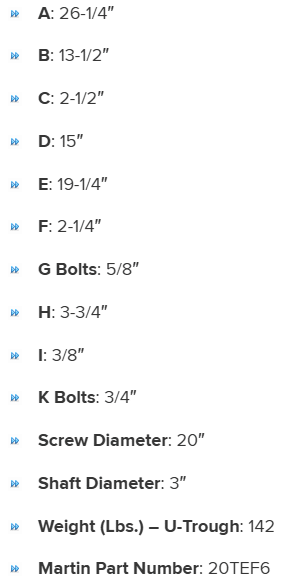

Specifications

A

26-1/4"

J

39-1/2"

C

2-1/2"

K Bolts

3/4"

L

13-1/2"

Martin Part Number

20TEF6

B

13-1/2"

D

15"

Screw Diameter

20"

Shaft Diameter

3"

E

19-1/4"

F

2-1/4"

G Bolts

5/8"

H

3-3/4"

Weight (Lbs.) - Flared Trough

153

Weight (Lbs.) - U-Trough

142

I

3/8"
