9SF324R

9SF324R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 9SF324R

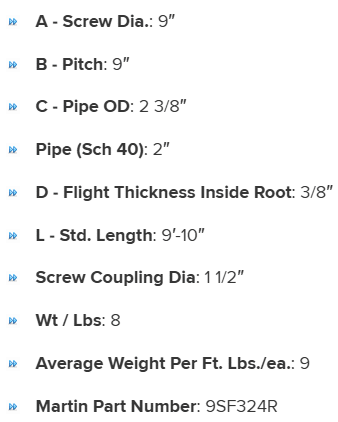

Specifications

A - Diameter Tolerance Minus

3/16"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

A - Screw Dia.

9"

Martin Part Number

9SF324R

Average Weight Per Ft. Lbs./ea.

9

Pipe Sch 40 - C- Pipe OD

2 3/8"

Pipe Sch 40 - Size

2"

D - Flight Thcknss Inside Root

3/8"

Screw Coupling Dia

1 1/2"

B - Pitch

9"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1/2"

Wt / Lbs

8
