PEF24FMS

PEF24FMS is a Flared Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Flared Trough Plate End Flange | KWS Manufacturing

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

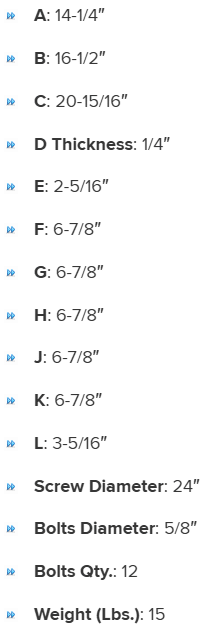

Specifications

A

14-1/4"
C

20-15/16"
J

6-7/8"
K

6-7/8"
L

3-5/16"
B

16-1/2"
D Thickness

1/4"
Screw Diameter

24"
E

2-5/16"
Bolts Diameter

5/8"
Bolts Qty.

12
F

6-7/8"
G

6-7/8"
Weight (Lbs.)

15
H

6-7/8"
