IC111440

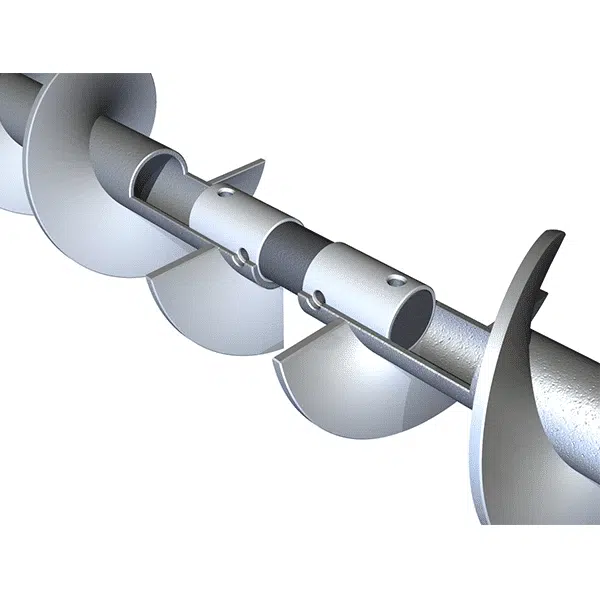

IC111440 is a Internal Collars product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

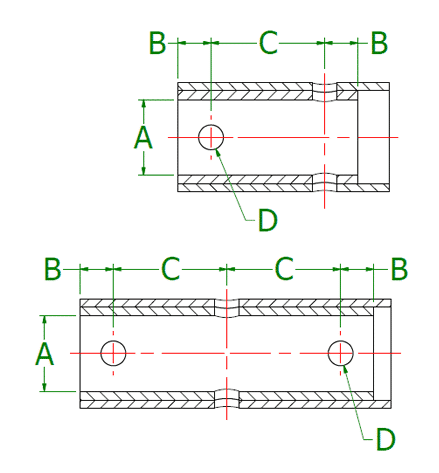

Dimensional Diagram for IC111440

Specifications

C - Bolt Centers

2"

A - Bore Dimension Max.

1.016"

A - Bore Dimension Min.

1.005"

Martin Part Number

CIC2

D - Nominal Bolt Size

3/8"

B - Spacing 1st Bolt

1/2"

Weight (Lbs.) - 2 Bolt

3

Weight (Lbs.) - 3 Bolt

4

Inside Pipe Diameter

1 1/4"
