12H614R

12H614R is a Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 12H614R

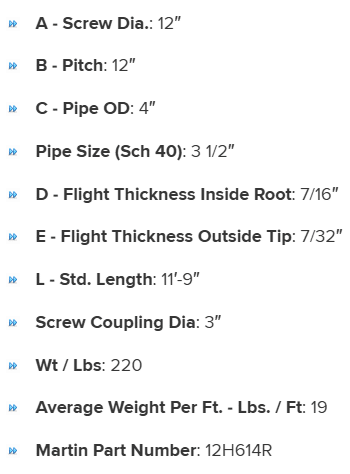

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

A - Screw Dia.

12"

Martin Part Number

12H614R

Average Weight Per Ft. - Lbs./Ft.

19

Pipe Sch 40 - C- Pipe OD

4"

Pipe Sch 40 - Size

3 1/2"

D - Flight Thcknss Inside Root

7/16"

Screw Coupling Dia

3"

B - Pitch

12"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1"

E - Flight Thcknss Outside Tip

7/32"

Wt / Lbs

220
