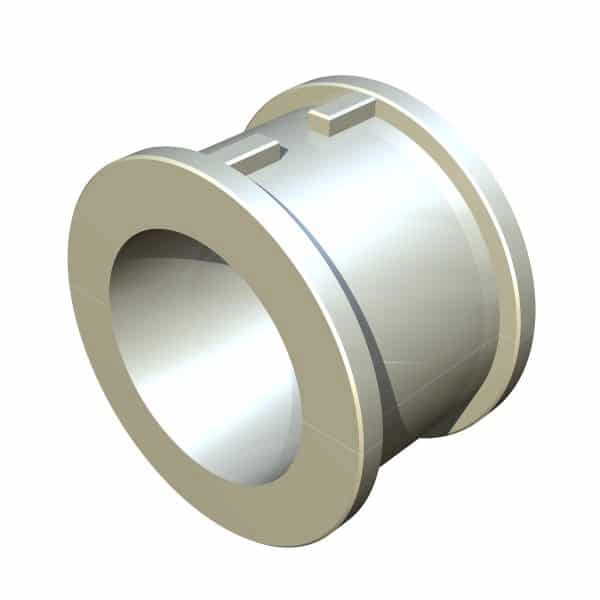

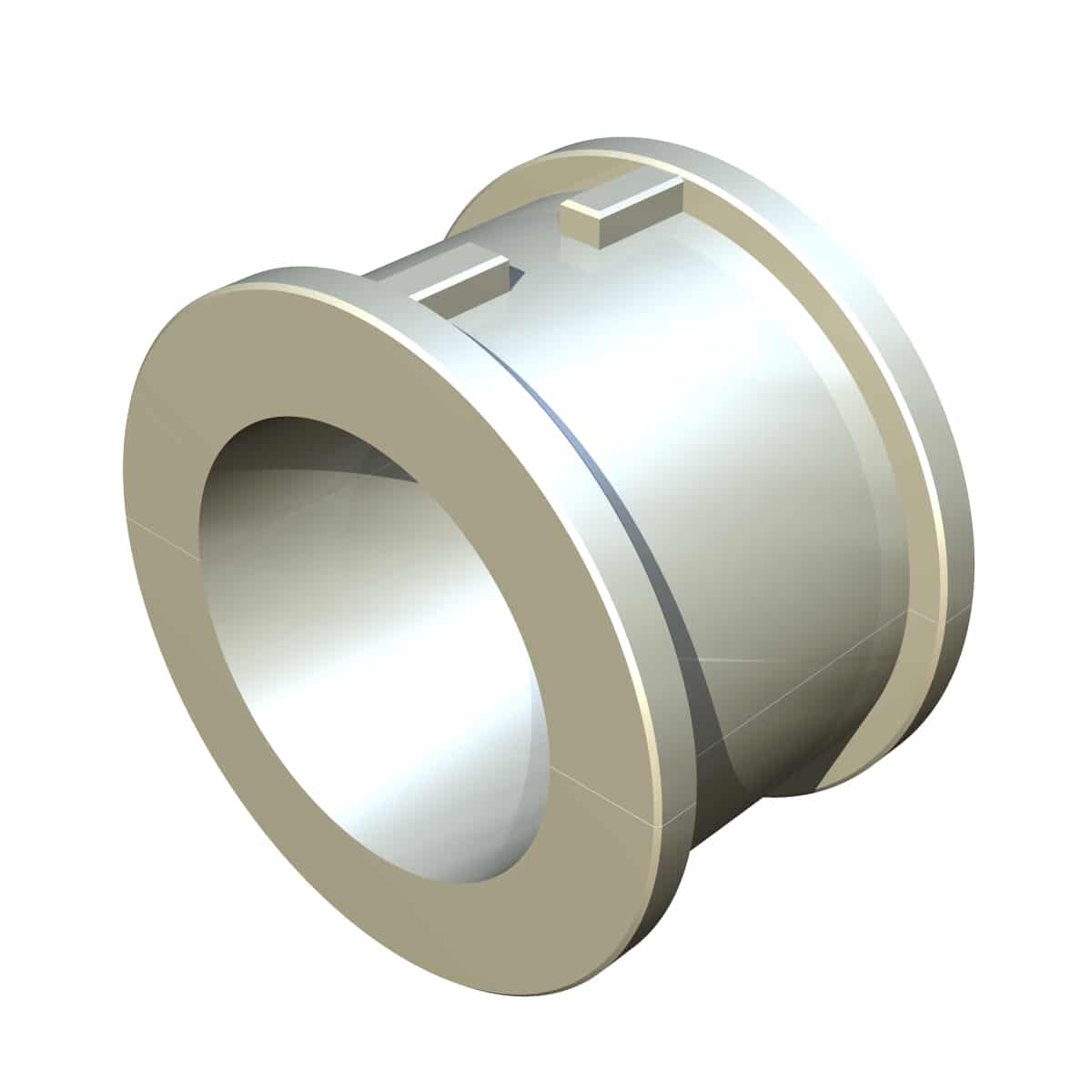

HGB2263UHMW

HGB2263UHMW is a UHMW Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2263UHMW

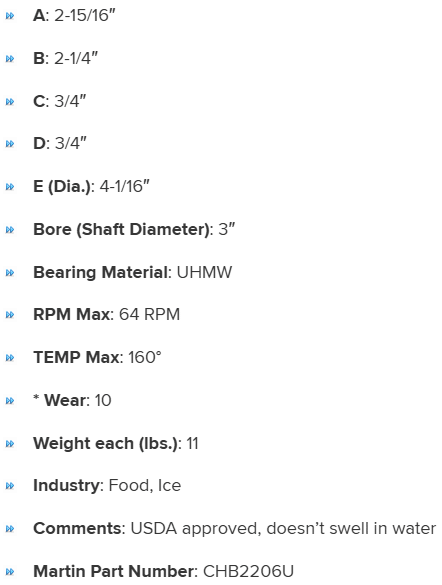

Specifications

C

3/4"

A

2-15/16"

Martin Part Number

CHB2206U

Comments

USDA approved, doesn't swell in water

B

2-1/4"

D

3/4"

RPM Max

64 RPM

Bearing Material

UHMW

TEMP Max

160°

E (Dia.)

4-1/16"

Bore (Shaft Diameter)

3"

* Wear

10

Weight each (lbs.)

11

Industry

Food, Ice
