HGB2263716NR

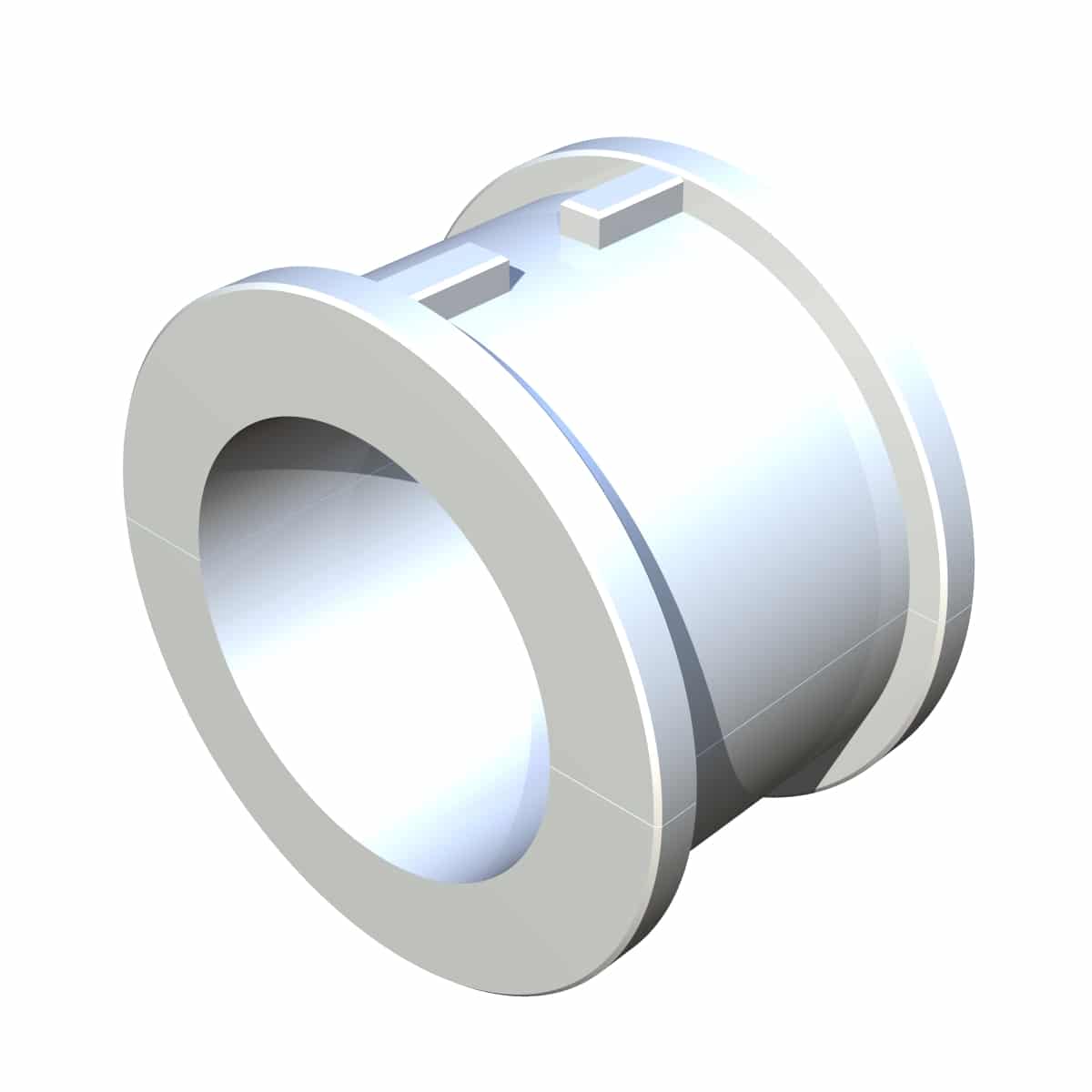

HGB2263716NR is a Nylatron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2263716NR

Specifications

C

1-1/4"

A

3-15/16"

Martin Part Number

CHB2207N

Comments

Self lubricating very low load capacity

B

3-1/4"

D

3/4"

RPM Max

60 RPM

Bearing Material

Nylatron

TEMP Max

180°

E (Dia.)

4-3/4"

Bore (Shaft Diameter)

3-7/16"

* Wear

3

Weight each (lbs.)

15

Industry

Chemical handling, grain, feed
