HGB2262716NR

HGB2262716NR is a Nylatron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2262716NR

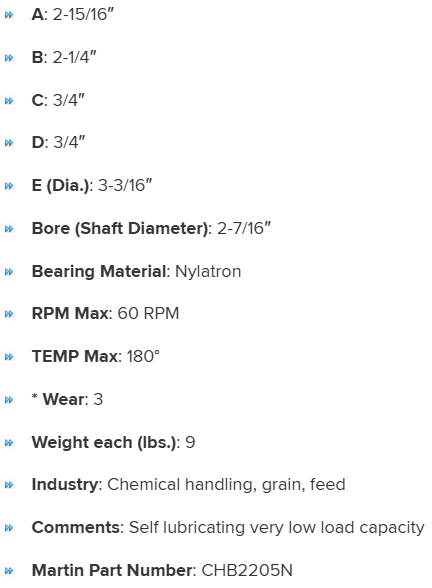

Specifications

C

3/4"

A

2-15/16"

Martin Part Number

CHB2205N

Comments

Self lubricating very low load capacity

B

2-1/4"

D

3/4"

RPM Max

60 RPM

Bearing Material

Nylatron

TEMP Max

180°

E (Dia.)

3-3/16"

Bore (Shaft Diameter)

2-7/16"

* Wear

3

Weight each (lbs.)

9

Industry

Chemical handling, grain, feed
