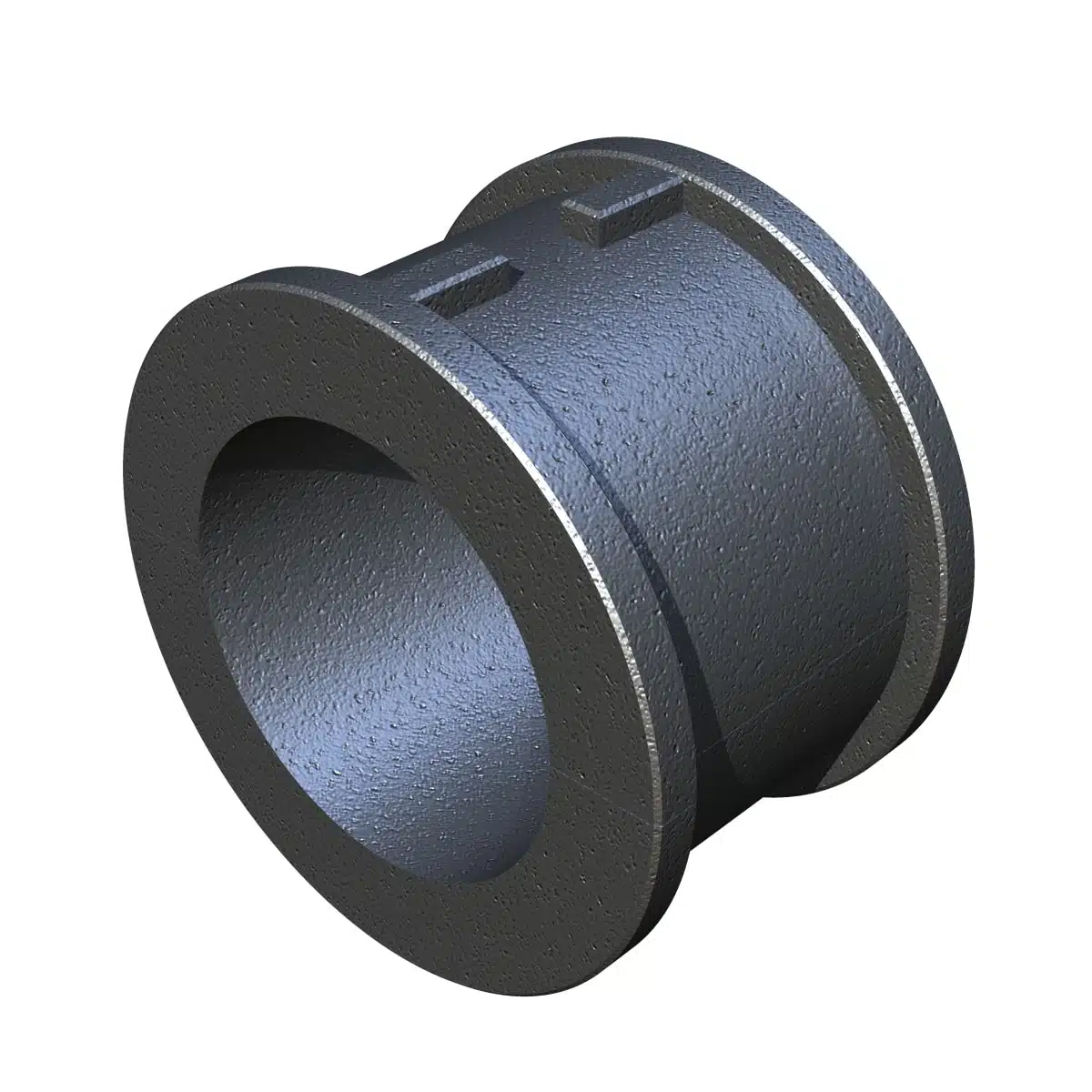

HGB2263716H

HGB2263716H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-226-Hard-Iron

Download CAD files

Dimensional Drawing for CEMA Stock Components

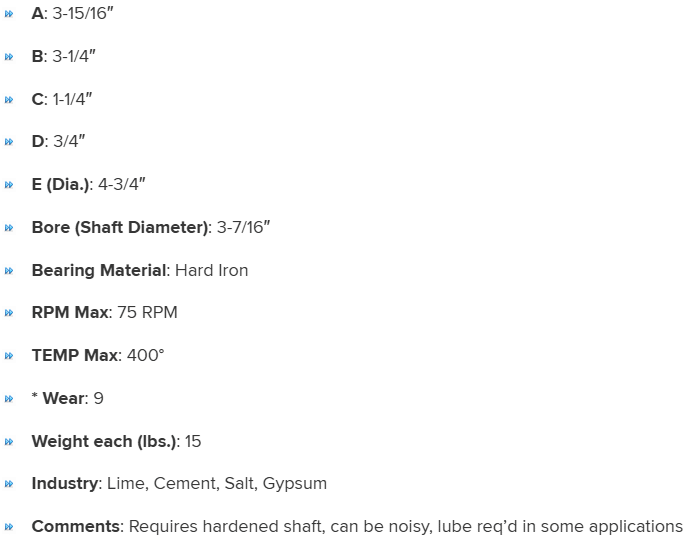

Specifications

A

3-15/16"

C

1-1/4"

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

3-1/4"

D

3/4"

RPM Max

75 RPM

Bearing Material

Hard Iron

E (Dia.)

4-3/4"

TEMP Max

400°

Bore (Shaft Diameter)

3-7/16"

* Wear

9

Weight each (lbs.)

15

Industry

Lime, Cement, Salt, Gypsum
