HGB2163H

HGB2163H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2163H

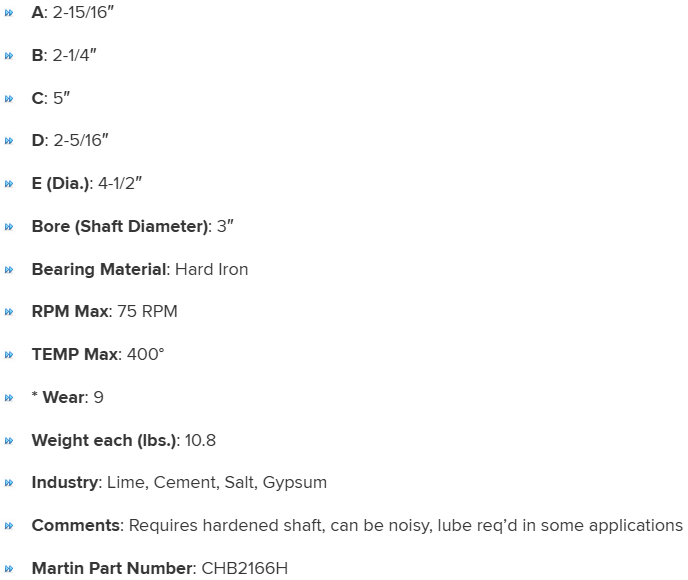

Specifications

C

5"

A

2-15/16"

Martin Part Number

CHB2166H

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

2-1/4"

D

2-5/16"

RPM Max

75 RPM

Bearing Material

Hard Iron

TEMP Max

400°

E (Dia.)

4-1/2"

Bore (Shaft Diameter)

3"

* Wear

9

Weight each (lbs.)

10.8

Industry

Lime, Cement, Salt, Gypsum
