20S724R

20S724R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 20S724R

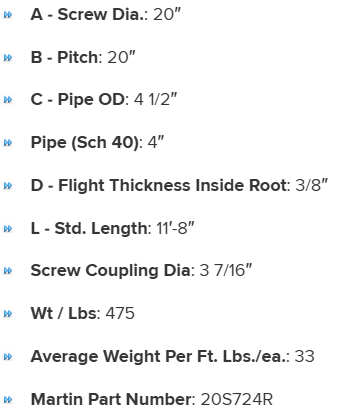

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

3/16"

L - Std. Length

11’-8"

A - Screw Dia.

20"

Martin Part Number

20S724R

Average Weight Per Ft. Lbs./ea.

33

Pipe Sch 40 - C- Pipe OD

4 1/2"

Pipe Sch 40 - Size

4"

D - Flight Thcknss Inside Root

3/8"

Screw Coupling Dia

3 7/16"

B - Pitch

20"

B - Pitch Tolerance Minus

1/2"

B - Pitch Tolerance Plus

7/8"

Wt / Lbs

475
