18SF624R

18SF624R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 18SF624R

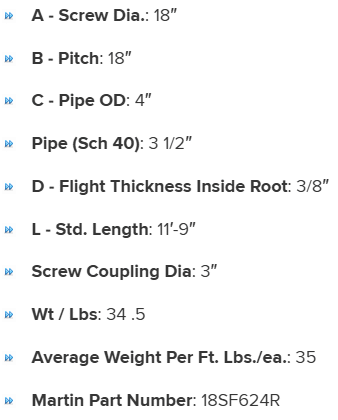

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

3/16"

L - Std. Length

11’-9"

A - Screw Dia.

18"

Martin Part Number

18SF624R

Average Weight Per Ft. Lbs./ea.

35

Pipe Sch 40 - C- Pipe OD

4"

Pipe Sch 40 - Size

3 1/2"

D - Flight Thcknss Inside Root

3/8"

Screw Coupling Dia

3"

B - Pitch

18"

B - Pitch Tolerance Minus

1/2"

B - Pitch Tolerance Plus

3/4"

Wt / Lbs

34 .5
