HGB226112H

HGB226112H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-226-Hard-Iron

Download CAD files

Dimensional Drawing for CEMA Stock Components

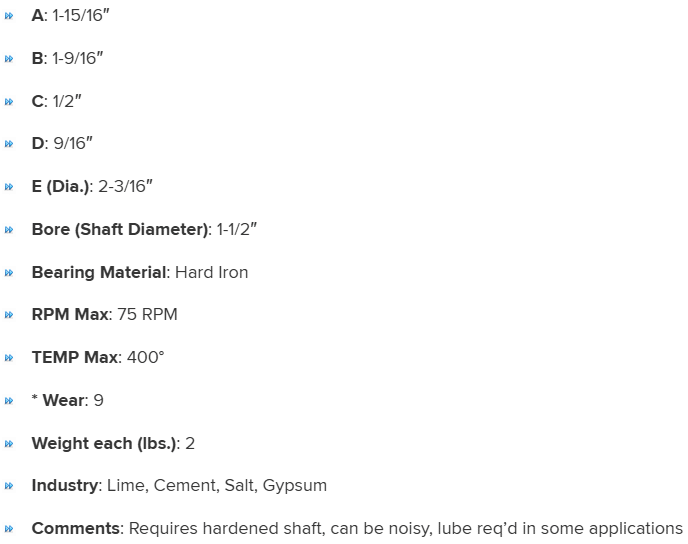

Specifications

A

1-15/16"

C

1/2"

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

1-9/16"

D

9/16"

RPM Max

75 RPM

Bearing Material

Hard Iron

E (Dia.)

2-3/16"

TEMP Max

400°

Bore (Shaft Diameter)

1-1/2"

* Wear

9

Weight each (lbs.)

2

Industry

Lime, Cement, Salt, Gypsum
