HGB216112H

HGB216112H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB216112H

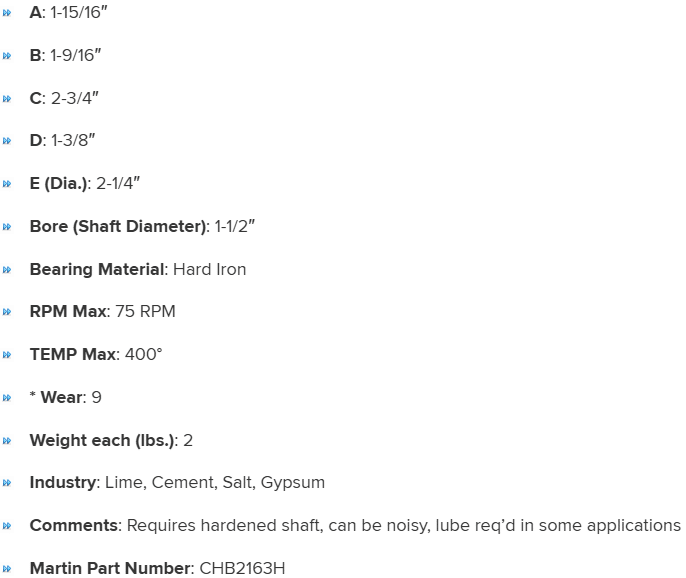

Specifications

C

2-3/4"

A

1-15/16"

Martin Part Number

CHB2163H

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

1-9/16"

D

1-3/8"

RPM Max

75 RPM

Bearing Material

Hard Iron

TEMP Max

400°

E (Dia.)

2-1/4"

Bore (Shaft Diameter)

1-1/2"

* Wear

9

Weight each (lbs.)

2

Industry

Lime, Cement, Salt, Gypsum
