HGB21631516BR

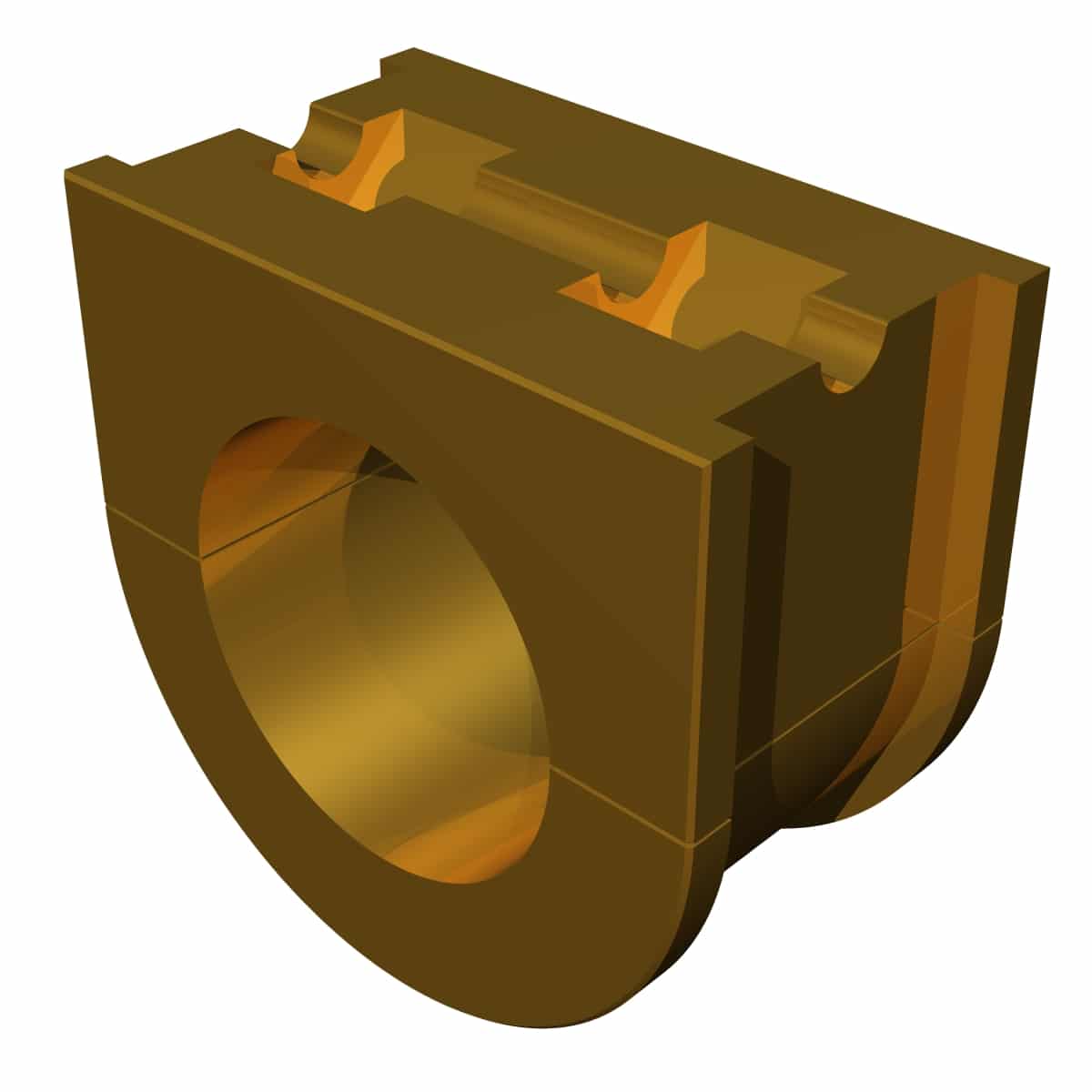

HGB21631516BR is a Bronze Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB21631516BR

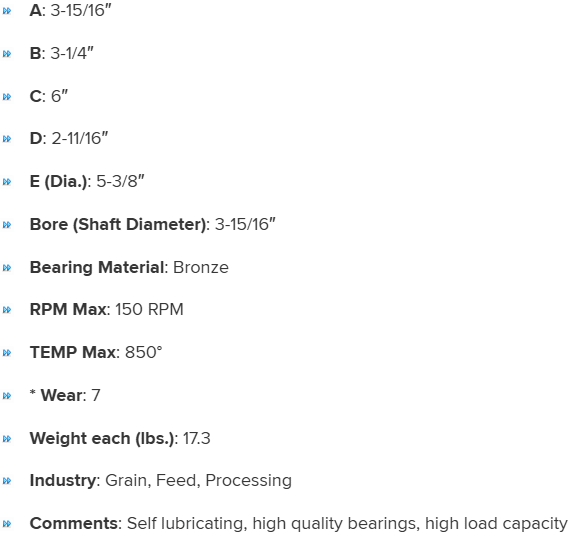

Specifications

A

3-15/16"

C

6"

Comments

Self lubricating, high quality bearings, high load capacity

B

3-1/4"

D

2-11/16"

RPM Max

150 RPM

Bearing Material

Bronze

TEMP Max

850°

E (Dia.)

5-3/8"

Bore (Shaft Diameter)

3-15/16"

* Wear

7

Weight each (lbs.)

17.3

Industry

Grain, Feed, Processing
