TEFO6112USS

TEFO6112USS is a 304 SS Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other 304 Stainless Steel Stock Components.

Dimensional Diagram for TEFO6112USS

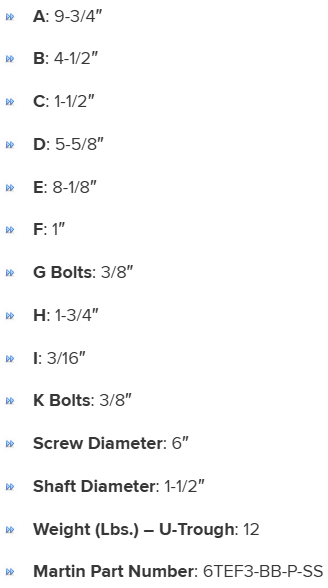

Specifications

A

9-3/4"

J

16-5/8"

C

1-1/2"

K Bolts

3/8"

L

7"

Martin Part Number

6TEF3-BB-P-SS

B

4-1/2"

D

5-5/8"

Screw Diameter

6"

Shaft Diameter

1-1/2"

E

8-1/8"

F

1"

G Bolts

3/8"

H

1-3/4"

Weight (Lbs.) - Flared Trough

15

Weight (Lbs.) - U-Trough

12

I

3/16"
